AC VOLTMETERS - AMMETERS

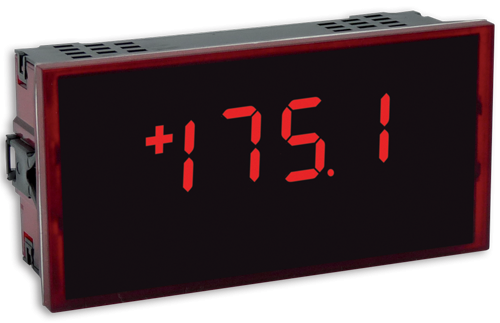

OML 343AC
AC voltmeter/ammeter
Model OML 343AC is an economical 3½-digit programmable alternating current V-A panel meter. Based on a single-chip microcontroller with A/D convertor, this instrument can be configured for eight different input settings, that are easily accessible in the instrument's menu. The OML 343AC is designed for very good accuracy, stability and ease of control.
OML 343AC
3 1/2 digit programmable AC Voltmeter/Ammeter with RMS
option: 1 relay
- 5 Year Warranty
- 1/8 DIN size
- Relay (option)
- Click for OML 343AC pricing
Data Sheet
| Display | Range | Accuracy | Power | Output | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0 to 1999
|
0 to 1 A
|
±0.3 % (of range) |
10 to 30 VDC/24 VAC |
1x relay |
1/8 DIN
|
|
|
|
|
|
|
|
|
|

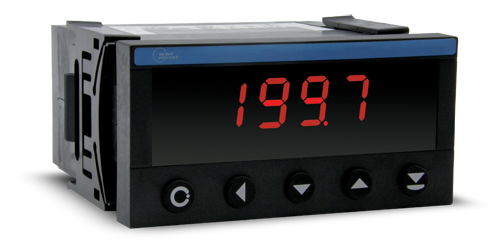

OM 352AC
AC voltmeter/ammeter
Model OM 352DC is a programmable 3½-digit V-A panel meter. Based on a single-chip microcontroller with A/D convertor, this instrument can be configured for seven different input settings, that are easily accessible in the instrument's menu. The OM 352DC is designed for high accuracy, stability and ease of control.
- 5 Year Warranty
- 1/8 DIN size
- Up to two relays (option)
- Click for OM 352AC pricing
- AC voltmeter or ammeter
- Digital filters: exponential avg, rounding
- Custom linearization settings
Data Sheet
| Display | Range | Accuracy | Power | Output | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
±1999
|
0 to 1 A
|
±0.3 % (of range) |
10 to 30 VDC/24 VAC |
0 to 2 relays |
1/8 DIN
|
|
|
|
|
|
|
|
|
|

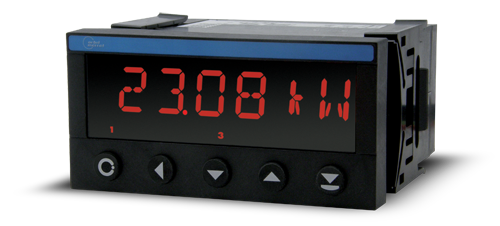

OM 402PWR
OM 402PWR
Close
Programmable AC network analyzer
Model OM 402PWR is a programmable 4-digit alternating current V-A panel meter with functions for network analysis. Based on a single-chip microcontroller with A/D convertor, this instrument can be configured for 10 different input range/type settings, that are easily accessible in the instrument's menu. The OM 402PWR is designed to measure voltage, current, active power, frequency and with calculations, reactive power, apparent power and cos fi.
The instrument is based on a single-chip microcontroller with a true RMS converter with very good accuracy, stability and ease of opertion.
- 5 Year Warranty
- Input: AC current or voltage
- Displays values -99999 to 999999
- Red, green or 3-color LEDs
- 1/8 DIN size
- Up to four relays (option)
- Data outputs: analog,
RS 232, RS 485 - Click for OM 402PWR pricing
- AC Ammeter, voltmeter, Wattmeter, frequency meter
- Functions: min/max, peak, tare, math functions
- Custom linearization settings
- Digital filters: floating/exp./Arithmetic average, rounding
Data Sheet
| Display | Range | Accuracy | Power | Output | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20 mm:
|
0 to 1 A
|
±0.3 % (of range) |
10 to 30 VDC/24 VAC
|
0 to 4x relay |
1/8 DIN
|
|
|
|
|
|
|
|
|
|
