PRODUCTS:
ANALOG SIGNAL CONDITIONERS

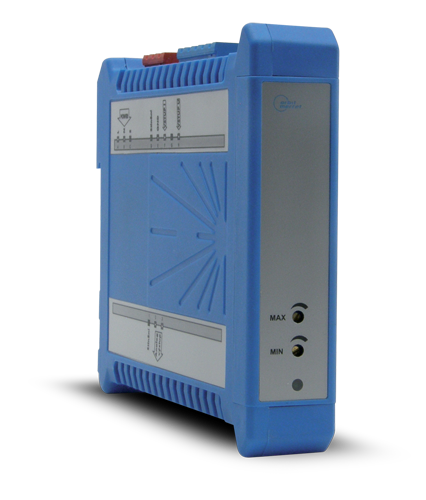

OMX 39PM Series of analog signal conditioners accepts one of six input types. Accuracy is ±0.1 % of range. All models are designed to be mounted to a DIN rail.
Power supply options are 10 to 30 V AC/DC or 80 to 250 V AC/DC. Excitation is adjustable from 5 to 24 V DC, with 1.2 W max. available power.
Inputs:
- 0 to 5 mA
- 0 to 20 mA
- 4 to 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
Outputs:
- 0 to 20 mA
- 4 to 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
- ±10 V DC
Data Sheet

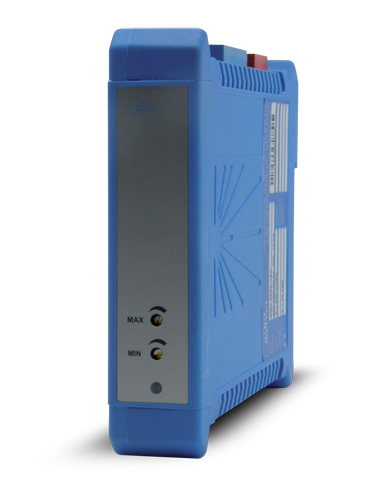

OMX 39AC Series of analog A/C signal conditioners These are designed for A/C voltage or current inputs. Accuracy is 0.3% of range. All models are designed to be mounted to a DIN rail.
Power supply options are 10 to 30 V AC/DC or 80 to 250 V AC/DC. Voltage or current input is galvanically isolated to 3.75 kV AC.
Inputs:
- 0 to 60 mV up to 450V AC
- 0 to 5 mA up to 5A AC
Outputs:
- 0 to 5 mA
- 0 to 20 mA
- 4 to 20 mA
- ± 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
- ±10 V DC
Data Sheet
OMX 39DC Series of analog signal conditioners accepts DC current or voltage inputs. Accuracy is ±0.1 % of range. All models are designed to be mounted to a DIN rail.
Power supply options are 10 to 30 V AC/DC or 80 to 250 V AC/DC. Excitation is adjustable from 5 to 24 V DC, with 1.2 W max. available power. Galvanic isolation to 600 V.
Inputs:
- 0 to 10 mV up to 10V DC
- 0 to 10 V up to 450V DC
- 0 to 5 mA up to 5A DC
Outputs:
- 0 to 20 mA
- 4 to 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
- ±10 V DC
Data Sheet
OMX 39DU Series of analog signal conditioners designed for a 3-wire variable resistor input. Accuracy is ±0.2 % of range. All models are designed to be mounted to a DIN rail.
Power supply options are 10 to 30 V AC/DC or 80 to 250 V AC/DC. Excitation is adjustable from 5 to 24 V DC, with 1.2 W max. available power.
Inputs:
- 0 to 100 kΩ
Potentiometer Supply:
- 10 VDC / 20 mA
Outputs:
- 0 to 20 mA
- 4 to 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
- ±10 V DC
Data Sheet
OMX 39 OHM Series of analog signal conditioners designed for a 2, 3 or 4-wire resistor input. Accuracy is ±0.2 % of range. All models are designed to be mounted to a DIN rail.
Power supply options are 10 to 30 V AC/DC or 80 to 250 V AC/DC.
Inputs:
- fixed range:
0 to 0.1 up to 100 kΩ
(specify with order)
Outputs:
- 0 to 20 mA
- 4 to 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
- ±10 V DC
Data Sheet
OMX 39RTD Series of analog signal conditioners designed for a RTD thermometer input. Accuracy is ±0.2% of range. All models are designed to be mounted to a DIN rail.
Power supply options are 10 to 30 V AC/DC or 80 to 250 V AC/DC.
RTD Input Types:
- Pt 100 (-50 to 850°C)
- Pt 500 (-50 to 850°C)
- Pt 1,000 (-50 to 850°C)
Connection:
- 2, 3 or 4-wire
Outputs:
- 0 to 20 mA
- 4 to 20 mA
- 0 to 2 V DC
- 0 to 5 V DC
- 0 to 10 V DC
- ±10 V DC
Data Sheet
Call Bristol Instruments on 877-866-8500 or email us for complete information including specifications or to discuss your application
