PID CONTROLLERS |
TEMPERATURE CONTROLLERS
ST 20/ST 22 small

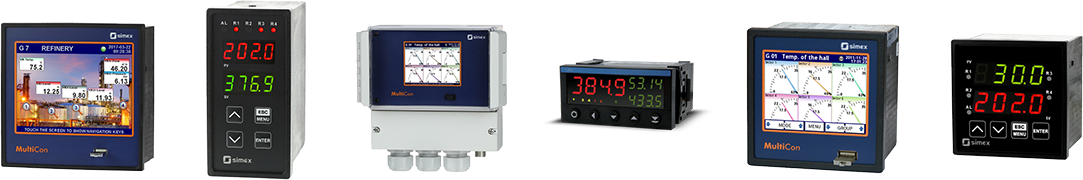

Bristol Instruments carries several lines of PID and temperature controllers in different sizes and application-driven features. All are easily configuable. Please contact us with your application or specification and we can help you select the right controller for your application.

OM 402PID
OM 402PID small
OM 402PID

OM 402PID

Close

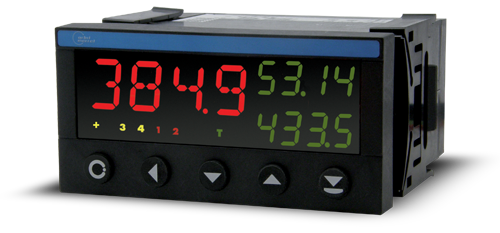

4-digit universal panel PID controller

OM 402PID is a 4-digit universal panel PID controller for maximum performance and ease-of-use. It is based on a fast 24-bit single-chip microcontroller with A/D convertor and can be configured for up to 8 different inputs, easily selectable in the instrument's menu. It also ensures high accuracy, stability and ease of control. In its default configuration the OM 402PID contains 2 control relay outputs and 2 alarm relay outputs. Output value can either be pass-through, constant, or defined by one of the 14 programs.

  • 5 Year Warranty
  • Eight input options include: DC, PM, RTD, T/C, DU
  • PID rgulator: parallel PID, PI or proportional
  • Programmable digital filters, tare, linearization
  • Accuracy to ±0.1% of range +1 digit
  • Relay options: up to four + two SSR
  • Analog and digital ouput options
OM 402PID data sheet

Data Sheet

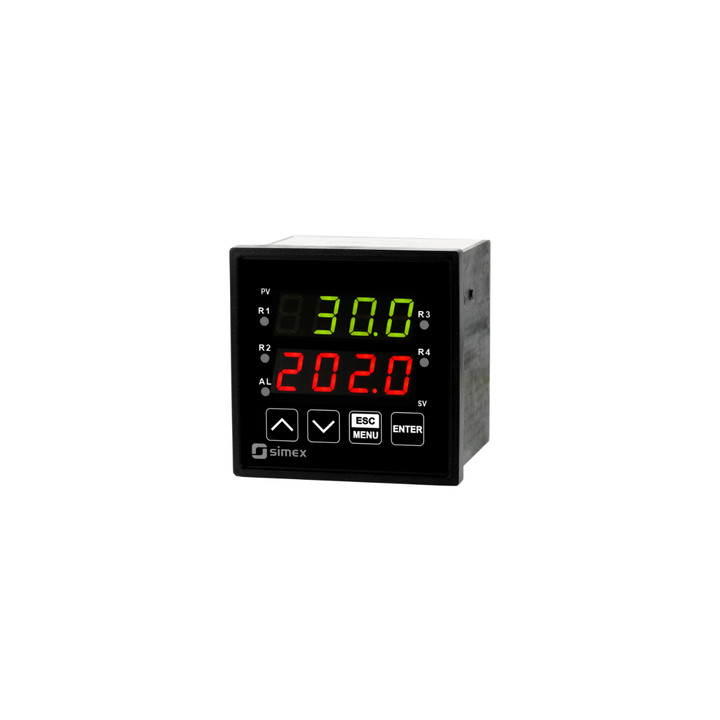

PUR-44D Series
PID Controllers
PUR-44D

PUR-44D Series

Close


PUR Series of PID controllers features On/Off hysteresis, two control loops, dual display, auto-tuning and fuzzy logic. Free configuration software included.

  • 2-Year Warranty
  • ON-OFF hsteresis
  • Two control loops
  • Auto-tuning
  • Universal inputs
  • Relay outputs
  • Peak value detection
  • Dual LED display:
    • PV - measured value
    • SV - setpoint value
  • Fuzzy logic
    - for controlling rate of
    setpoint change,
    see figs. 6.8-6.9
  • Analog output
  • Digital/comm output
PUR-44D data sheet

Data Sheet

Display Range Accuracy Power Output Size

-999 to 9999
9 /7 mm
red/green or
green/red

0 to 20,
4 to 20 mA
0 to 5/10 V
1 to 5 V,
2 to 10 V
0 to 60/75/100/
150 mV
Pt RTD:
100/500/1,000
Thermocouple:
J/K/T/E/B/S/R/N

±0.1% ±1digit except T/C*

19 to 50 DC
85 to 260 V AC/DC
16 to 35 V AC
12 V AC/DC

Relays:
Type C (N.O.),
SSR (O.C.)
Analog:
0 to 4/20 mA
4 to 20 mA
0/1 to 5 V
0/2 to 10 V
Communication:
RS-485
Modbus RTU
Excitation:
24 VDV @50 or
100 mA

Case:
48 x 48 x 100 mm
cutout:
43 x 43 mm

* Thermocouple input accuracy:
T/C Type(s)
J, K, E
N
R, S, T, B


Accuracy
±0.1%
±0.2
±0.5%

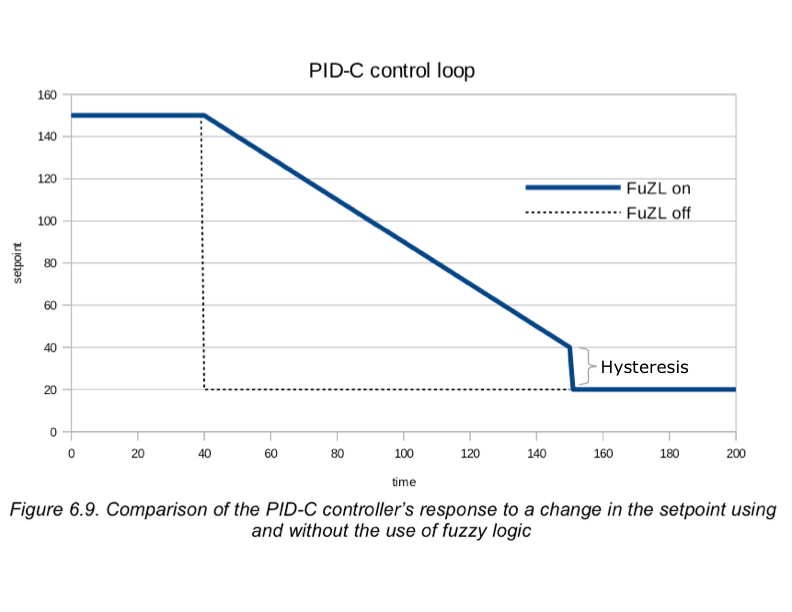

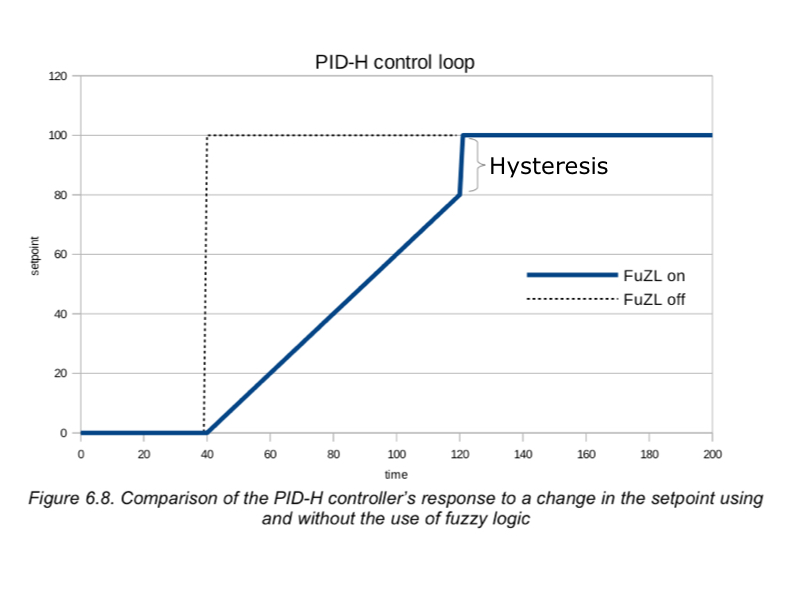

Fuzzy Logic Enables 'Transition Smoothing'

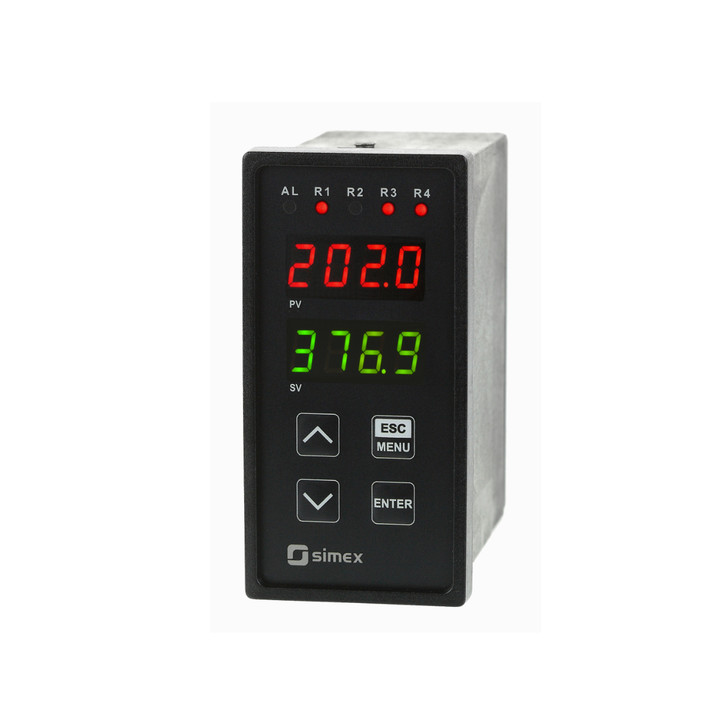

PUR-49D Series
PID Controllers
PUR-49D

PUR-49D Series

Close


PUR Series of PID controllers features On/Off hysteresis, two control loops, dual display, auto-tuning and fuzzy logic. Free configuration software included.

  • 2-Year Warranty
  • ON-OFF hsteresis
  • Two control loops
  • Auto-tuning
  • Universal inputs
  • Relay outputs
  • Peak value detection
  • Dual LED display:
    • PV - measured value
    • SV - setpoint value
  • Fuzzy logic
    - for controlling rate of
    setpoint change,
    see figs. 6.8-6.9
  • Analog output
  • Digital/comm output
PUR-49D data sheet

Data Sheet

Display Range Accuracy Power Output Size

-999 to 9999
9 / 9 mm
red/green or
green/red

0 to 20,
4 to 20 mA
0 to 5/10 V
1 to 5 V,
2 to 10 V
0 to 60/75/100/
150 mV
Pt RTD:
100/500/1,000
Thermocouple:
J/K/T/E/B/S/R/N

±0.1% ±1digit except T/C*

19 to 50 DC
85 to 260 V AC/DC
16 to 35 V AC
12 V AC/DC

Relays:
Type C (N.O.),
SSR (O.C.)
Analog:
0 to 4/20 mA
4 to 20 mA
0/1 to 5 V
0/2 to 10 V
Communication:
RS-485
Modbus RTU
Excitation:
24 VDV @50 or
100 mA

Case:
48 x 96 x 100 mm
cutout:
43 x 90.5 mm

* Thermocouple input accuracy:
T/C Type(s)
J, K, E
N
R, S, T, B


Accuracy
±0.1%
±0.2
±0.5%

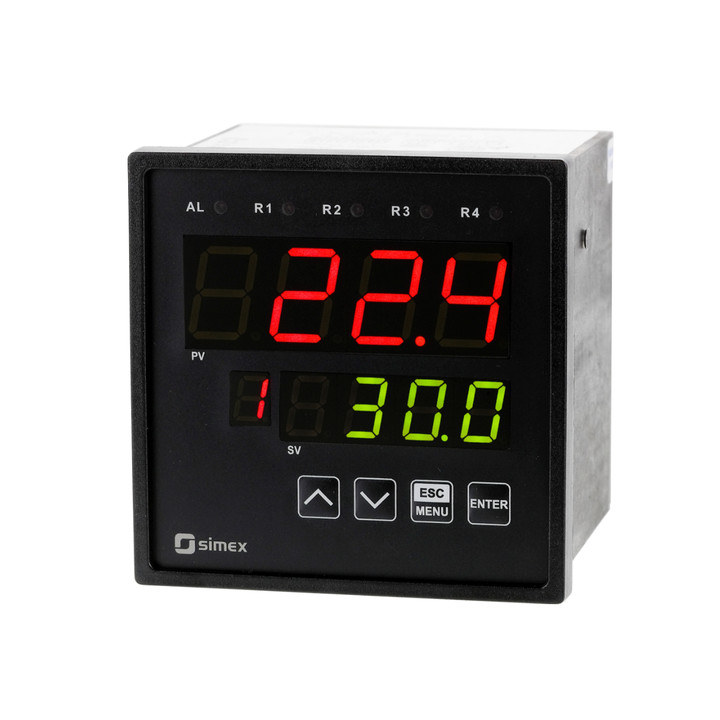

PUR-99 Series
PID Controllers
PUR-44D

PUR-99 Series

Close


PUR Series of PID controllers features On/Off hysteresis, two control loops, dual display, auto-tuning and fuzzy logic. Free configuration software included.

  • 2-Year Warranty
  • ON-OFF hsteresis
  • Two control loops
  • Auto-tuning
  • Universal inputs
  • Relay outputs
  • Peak value detection
  • Dual LED display:
    • PV - measured value
    • SV - setpoint value
  • Fuzzy logic
    - for controlling rate of
    setpoint change,
    see figs. 6.8-6.9
  • Analog output
  • Digital/comm output
PUR-99 data sheet

Data Sheet

Display Range Accuracy Power Output Size

-999 to 9999
20 /13 mm
red/green or
green/red + single digit

0 to 20,
4 to 20 mA
0 /1 to 5
0/2 to 10 V
1 to 5 V,
2 to 10 V
0 to 60/75/100/
150 mV
Pt RTD:
100/500/1,000
Thermocouple:
J/K/T/E/B/S/R/N

Digital

±0.1% ±1digit except T/C*

19 to 50 DC
85 to 260 V AC/DC
16 to 35 V AC
12 V AC/DC

Relays:
Type C (N.O.),
SSR (O.C.)
Analog:
0 to 4/20 mA
4 to 20 mA
0/1 to 5 V
0/2 to 10 V
Communication:
RS-485
Modbus RTU
Excitation:
24 VDV @50 or
100 mA

Case:
96 x 96x 100 mm
cutout:
90.5 x 90.5 mm

* Thermocouple input accuracy:
T/C Type(s)
J, K, E
N
R, S, T, B


Accuracy
±0.1%
±0.2
±0.5%

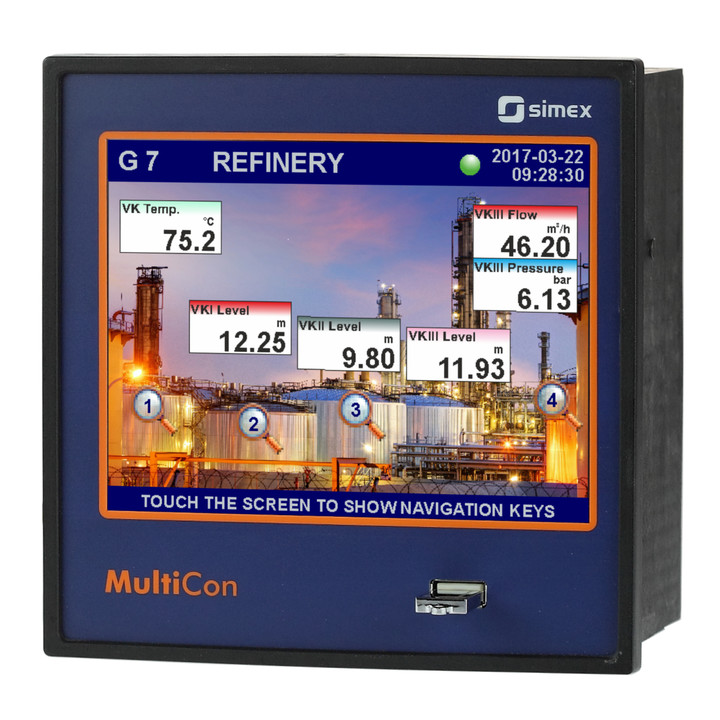

MultiCon Series
Controllers | PID
PUR-44D

MultiCon Series

Close

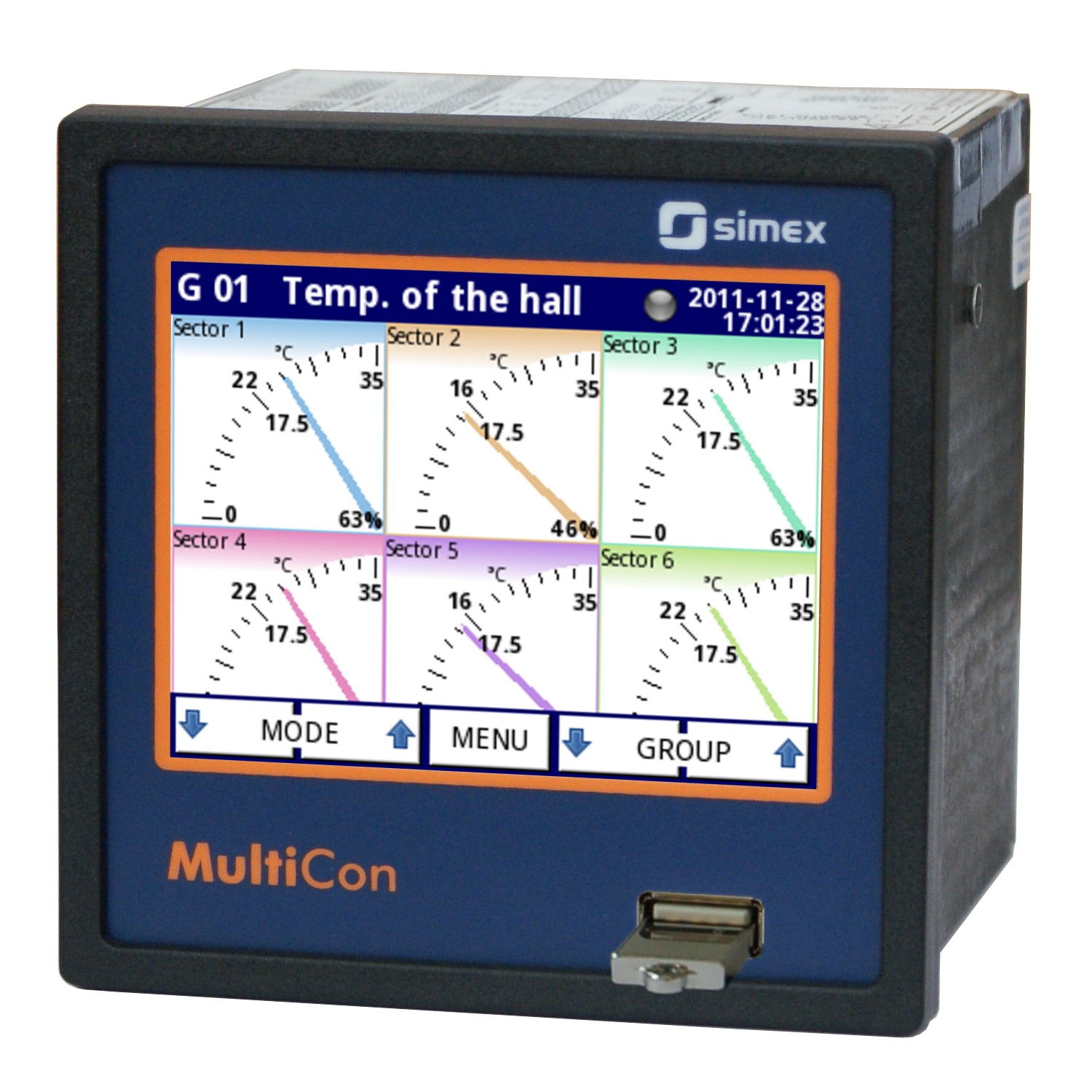

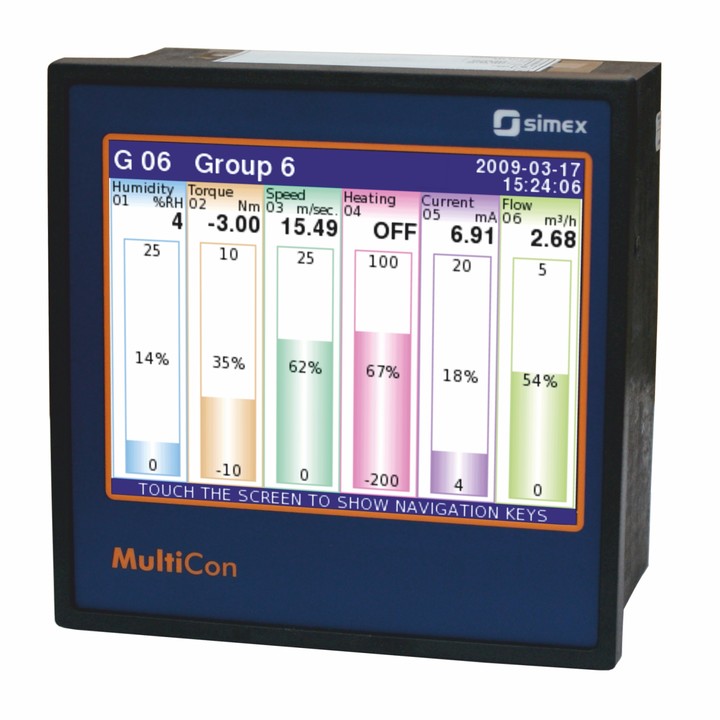

MultiCon Series of controllers features controller, SCADA and data recorder functionality, custom plant visualaztion, bargraphs, line graphs, numeric values and simulated analog gauges can be displayed showing values from attached sensors.
  • 2-Year Warranty
  • Meter + Controller + Recorder + SCADA
  • Linux-based
  • 41 input/output modules
  • 60 (CMC-99) or 90 (CMC-141) max. logical channels
  • Color LCD touchscreen
  • Record rate up to 10 / sec
  • Custom planty visualization with
    data overlays
  • Control loops with PID, autotune, hysteresis, fuzzy logic
  • RS-485 (Modbus RTU), USB, Ethernet communication
  • Two sizes:
    models 99 and 141
MultiCon wall mount version data sheet

Brochure / Data Sheet

Display Ranges Accuracy Power Output Acq. Rate

Tchscrn.

CMC-90: 3.5 in

CMC-141: 5.7 in

0/4 to 20 mA
0 to 5/10/30 V
0/1 to 5 V,
0/2 to 10 V
-10 to 25,
100 mV
0 to 600 mV
Pt or Ni RTD:
100/500/1,000
Cu RTD:
50, 100
Thermocouple:
J/K/T/E/B/S/R/N
Resistance:
0 to 300 Ω,
3 kΩ

Digital

±0.1% ±1digit except T/C*

19 to 50 DC
85 to 260 V AC/DC
16 to 35 V AC

Analog ch:
CMC-99 to 8
CMC-141 to 24

Relays:
CMC-99 to 16/4/48
SPST/SPDT/SSR

CMC-141 to 36/18/72
SPST/SPDT/SSR

Communication:
RS-485/RS-232
Ethernet

0.1 sec to 24 hrs.

* Thermocouple input accuracy:
T/C Type(s)
J, K, E
N
R, S, T, B


Accuracy
±0.1%
±0.2
±0.5%

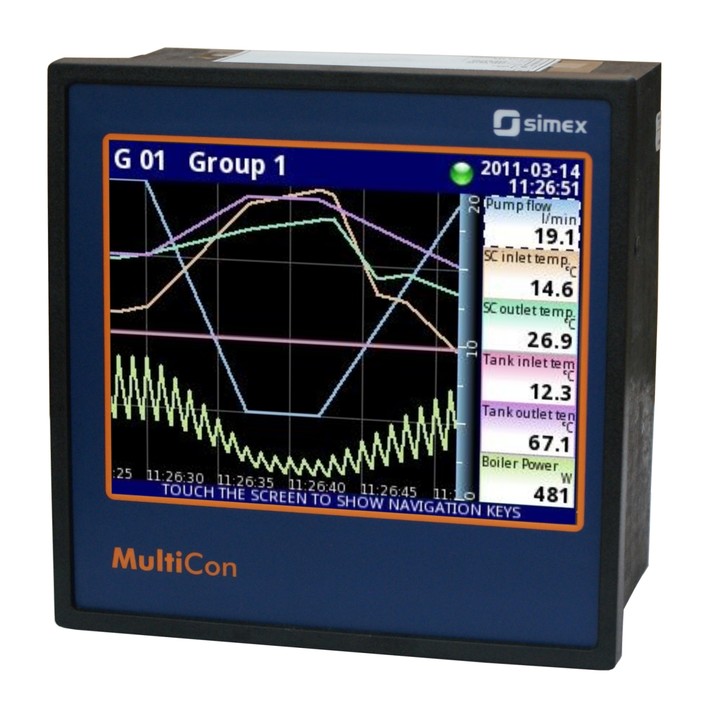

MultiCon CMC-N16
Controllers | PID
PUR-44D

MultiCon NC-16

Close

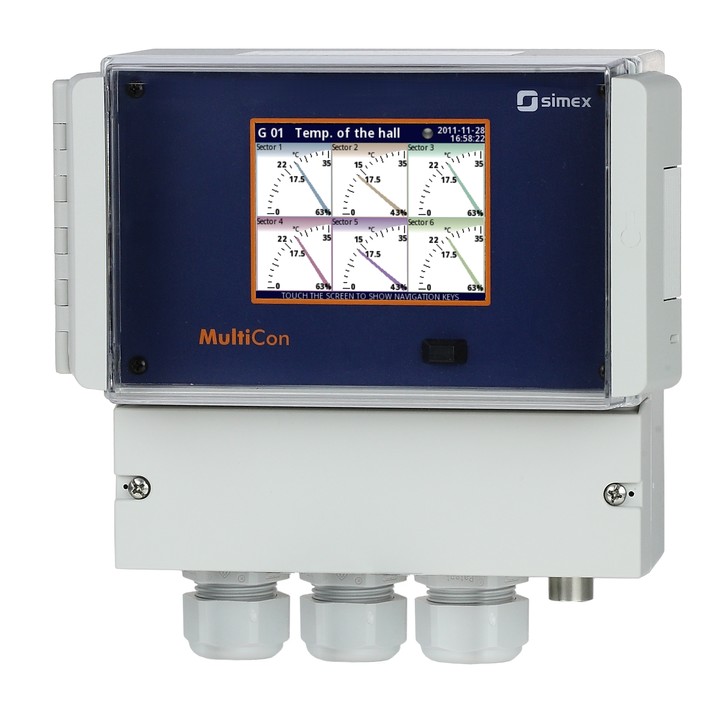

MultiCon NC-16 controllers features controller, SCADA and data recorder functionality, custom plant visualaztion, bargraphs, line graphs, numeric values and simulated analog gauges can be displayed showing values from attached sensors. The NC-16 units are designed to be wall mounted. They also inlude a case protecting agains ingress to IP 65.

  • 2-Year Warranty
  • Meter + Controller + Recorder + SCADA
  • Wall-mounted IP 65 case
  • Linux-based
  • 41 input/output modules
  • 60 (CMC-99) or 90 (CMC-141) max. logical channels
  • Color LCD touchscreen
  • Record rate up to 10 / sec
  • Custom planty visualization with
    data overlays
  • Control loops with PID, autotune, hysteresis, fuzzy logic
  • RS-485 (Modbus RTU), USB, Ethernet communication
  • Two sizes:
    models 99 and 141
MultiCon wall mount version data sheet

Brochure / Data Sheet

MultiCon wall mount version data sheet

Ordering Sheet

Display Ranges Accuracy Power Output Acq. Rate

Tchscrn.

CMC-N16: 3.5 in

0/4 to 20 mA
0 to 5/10/30 V
1 to 5 V,
2 to 10 V
-10 to 25,
100 mV
0 to 600 mV
Pt or Ni RTD:
100/500/1,000
Cu RTD:
50, 100
Thermocouple:
J/K/T/E/B/S/R/N
Resistance:
0 to 300 Ω,
3 kΩ

Digital

±0.1% ±1digit except T/C*

19 to 50 DC
85 to 260 V AC/DC
16 to 35 V AC

Analog ch:
CMC-N16 2 or 4

Relays:
CMC-N16 2 or 4
SPST/SPDT/SSR


Communication:
RS-485
Ethernet

0.1 sec to 24 hrs.

* Thermocouple input accuracy:
T/C Type(s)
J, K, E
N
R, S, T, B


Accuracy
±0.1%
±0.2
±0.5%

Call Bristol Instruments on 877-866-8500 or email us for complete information including specifications or to discuss your application
