PRODUCTS:
PROCESS MONITORS

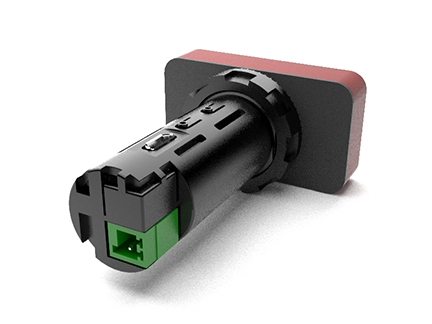

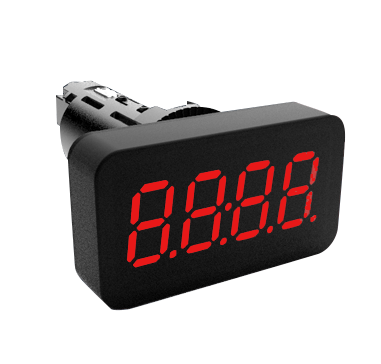

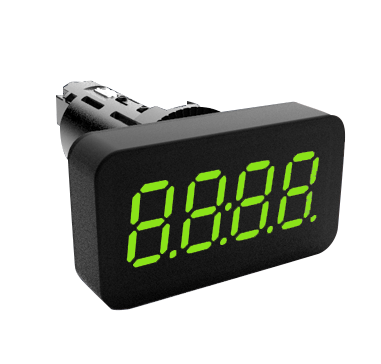

OMM 335PM is a 4-digit Process Monitor.
The device is microprocessor based and is designed for good accuracy and ease of operation. The circular section of the body of the box with a diameter of 22 mm allows for its fast and easy installation in control and monitoring panels by simply drilling a round hole, rather than creating a rectangular cutout. Can be loop powered.
Data Sheet
| Display | Input Ranges | Accuracy | Power | Output | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
-999…9999
|
±5 mA
|
±0.15% of range
|
10 to 30 V AC/DC
|
None |
Display:
|
|
|
|
|
|
|
|
|
|

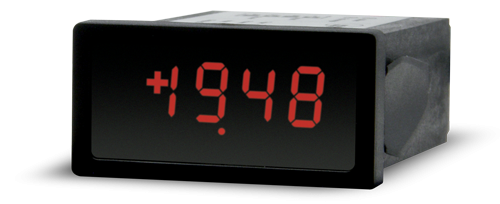

OMM 323UNI
3½-digit programmable display / process monitor
OMM 323UNI Series meters are economical 3½-digit programmable panel meters designed for basic applications. OMM 323UNI is based on a single-chip microcontroller with A/D convertor. This instrument can be configured for eight different input settings, that are easily accessible in the instrument's menu. The meter is designed for high accuracy, stability and ease of control. Choose red or green LED display option.
- 5 Year Warranty
- Data display
- Digital filters, linearization
- 1/32 DIN
- Click for OMM 323UNI pricing
- Multifunction input: AC, DC, Process Monitor, RTD, T/C, DU, Ni and resistance
- DC voltmeter and ammeter, ohmmeter, T/C & RTD thermometer
- Display unit for linear potentiometers
Data Sheet
| Display | Input Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
±1999
|
±90/±180 mA
|
±0.15 % (of range) |
10 to 30 VDC/24 V AC
|
|
1/32 DIN
|
|
|
|
|
|
|
|
|
|
OML 343UNI
3½-digit universal programmable display / process monitor
Model OML 343UNI is a simple and economical 3½-digit universal programmable panel meter. Based on a single-chip microcontroller with A/D convertor, this instrument can be configured for eight different input settings, that are easily accessible in the instrument's menu. The OML 343UNI is designed for high accuracy, stability and ease of control.
- 5 Year Warranty
- 1/8 DIN size
- Relay (option)
- Click for OML 343UNI pricing
- Multifunction input: AC, DC, Process Monitor, RTD, T/C, DU, Ni and resistance
- DC Voltmeter and ammeter, ohmmeter, T/C & RTD thermometer
- Digital filters, linearization
Data Sheet
| Display | Input Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
±1999
|
±90/±180 mA
|
±0.15 % (of range) |
10 to 30 V DC/24 V AC |
1x relay |
1/8 DIN
|
|
|
|
|
|
|
|
|
|

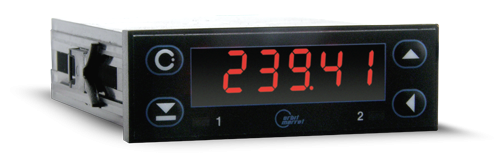

OMM 350UNI
6-digit programmable display / process monitor
Model OMM 350UNI is a small, 6-digit panel measuring instrument with universal inputs. Instrument is based on a single chip microcontroller with accurate A/D convertor, which assures high accuracy, stability and easy programming.
- 5 Year Warranty
- Digital filters, linearization
- Relays (option)
- Click for OMM 350UNI pricing
- Multifunction input: DC, Process Monitor, RTD, T/C, DU
- DC Voltmeter and ammeter, ohmmeter, T/C & RTD thermometer
- Display unit for linear potentiometers
Data Sheet
| Display | Input Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
±1999
|
±90/±180 mA
|
±0.2 % (of range) |
10 to 30 V DC/24 V AC, isolated |
2x relays |
bezel: 72 x 24 mm
|
|
|
|
|
|
|
|
|
|

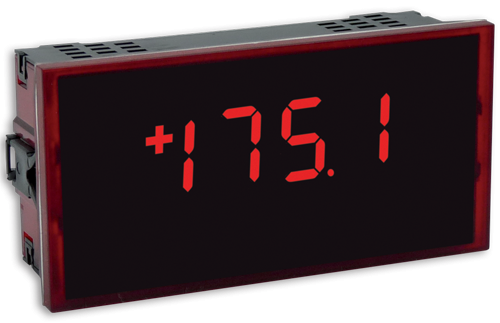

OM 352UNI
3½- or 4-digit programmable display / process monitor
The OM 352UNI Series of economical programmable universal panel meters are available in 3½-and 4-digit models. It is based on a single-chip microcontroller with an A/D convertor which ensures good accuracy, stability and easy programming. The OM 352UNI can be configured for 8 different input signal types. It is available with either 14 mm or 20 mm display, which is 3-color and its color can change when a user programmed value is reached. Excitation option.
- 5 Year Warranty
- 3-Color display version
- Relays, data output analog output (options)
- Click for OM 352UNI pricing
- Multifunction input: AC, DC, Process Monitor, RTD, T/C, DU, Ni and resistance
- DC Voltmeter and ammeter, ohmmeter, T/C & RTD thermometer
- Display unit for linear potentiometers
Data Sheet
| Display | Input Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3½- digit model:
|
±20/±60/±1 000 mV
|
±0.2 % (of range) |
10 to 30 V AC/DC
|
2x relays
|
1/8 DIN
|
|
|
|
|
|
|
|
|
|

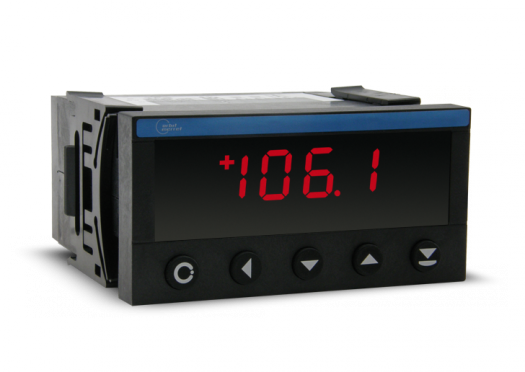

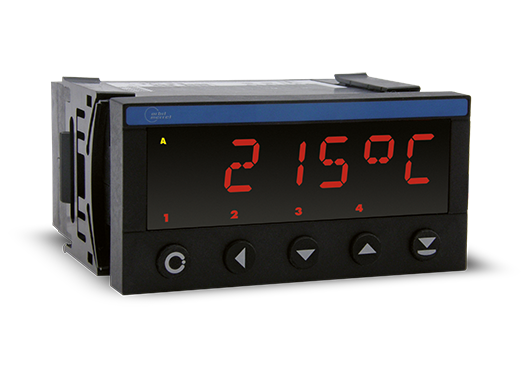

OM 402UNI
4- or 6-digit programmable display / process monitor
Model OM 402UNI Series of universal programmable panel instruments are available
in 4- and 6-digit models. Based on a single chip microcontroller with a fast 24-bit A/D convertor, it can be configured for 8 different input signal types, easily set in the instrument's menu.
- 5 Year Warranty
- 3-Color display version
- Relays, data output analog output (options)
- 1/8 DIN size
- Click for OM 402UNI pricing
- Multifunction input: DC, Process Monitor, RTD, T/C, DU, Ni, CU and resistance
- DC Voltmeter and ammeter, ohmmeter, T/C & RTD thermometer
- Display unit for linear potentiometers
- Excitation option
Data Sheet
| Display | Input Ranges | Accuracy | Power | Outputs | Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4- digit model:
|
±60/±150/±300/±1200mV
|
±0.1 % (of range) |
10 to 30 V AC/DC
|
5 to 24 V DC
|
1/8 DIN
|
|
|
|
|
|
|
|
|
|
Call Bristol Instruments on 877-866-8500 or email us for complete information including specifications or to discuss your application
