PANEL METERS

Bristol Instruments offers one of the widest ranges of panel meters with five-year warranties, widest input types and range options, high accuracy and one the fastest response times and easiest to set up using our OM Link software and adapter.

Our Panel Meter products include those designed to measure or monitor DC voltage and current are found in this category. Bristol Instruments carries five panel meters of various sizes and number of digits displayed. The models range from 3½ to six digits displayed. Accuracy is as tight as ±0.1% depending on model. View products, features and specifications in this category here. View these meters.

Highly accurate meters often designed to monitor, alert and control a process in industry define this category. Some are loop-powered panel meters. Relay output options as well as analog or digital outputs are available for panel meters in this category. View products, features and specifications in this category: View these meters.

These products that are designed to measure or monitor AC voltage and current are found in this category. Bristol Instruments carries three panel meters of various sizes and number of digits displayed including AC network analyzer. The input ranges include 0 to 60 mV, up to 450 V AC and 0 to 1 up to 5 A AC—depending on the model. Accuracy is as tight as ±0.1% depending on model. Current transformers are shown on our Accessories page. These convert high current sources to be measured into typically a few hundred millivolts to apply to a meter input which can be easily scaled in the meter software. View these meters.

Discrete temperature monitors are meters that are designed to accept a temperature sensor for an input. Our meters go further with some models that can apply a linearization function or user entered points to apply a linearization formula to the input. They are also designed to accept 50/100/500/1,000 Pt and 50/100 Cu RTDs, thermocouples of types J/K/T/E/B/S/R/N/L and 1,000/10,000 Ni temperature sensors. View these meters.

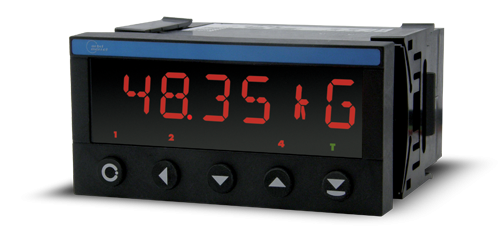

Designed to connect to strain gauge bridges for weight measurements, these panel meters can be configured to accept 1 to 4 mV/V, 2 to 8 mV/V or 4 to 16 mV/V input ranges with a 4-wire or a 6-wire connection for +/- input, +/- sense and +/- supply. They also have a shield input. Tare, filters and linearization can be applied as well. View these meters.

All of our universal panel meters are designed with specific inputs for linear potentiometers. Nearly all have excitation for applications that require it. View these meters.

Our 502I meter provides both instantaneous and time-integral output values in response to one of several ranges of current or voltage inputs to these integrating panel meters. View these meters.

Our meters all have LED digital displays for high readability in various lighting environments. Display brightness is settable on most models. Several models offer different digit heights and our large displays are designed to be read from a distance and work indoors or outdoors. View these displays.

All of our universal panel meters have programmable linearization and filtering capability. View these meters.

This class of our panel meters accepts TTL, NPN/PNP and frequency inputs within various voltage ranges depending on the model. Some are simple displays while others are programmable with selectable measuring modes as well as relay, analog and digital output options. View these meters.

If you need a PID controller, ours is specifically designed to be easy to use, has a 24-bit A/D converter for high accuracy and fully programmable. To see products, features and specifications in this category: view controllers.
